Beyond Static Embeddings: Training a 6,000-Parameter RL Agent to Actively Hunt Down Historical Planning Maps

Created on October 15, 2026 2026 · reinforcement-learning · markov-decision-processes · computer-vision · sovereign-ai

Why throw a huge LLM or brute-force grid search at a spatial business problem when you can frame it as a Markov Decision Process (MDP) and solve it in milliseconds with a tiny policy network in pure NumPy?

Back in April, I wrote about training a 49-million-parameter contrastive ResNet50 model to geolocate planning documents across Greater Manchester. That approach treated map localization like a giant one-shot classification problem: chop Greater Manchester into 3,478 reference tiles, embed the document, run a matrix multiplication, and hope the nearest tile embedding is the right one.

It worked well as a proof of concept, but as I dug deeper into real-world council archives and started following Sergey Levine’s Deep Reinforcement Learning course (CS285) at UC Berkeley, I realized that one-shot static perception is the wrong abstraction for how real localization works.

When a human caseworker—or an intelligent system—tries to locate a messy, historical planning document on a map, they don’t take a single glance at the entire city and guess. They investigate:

1. They start at a rough clue (an address, a postcode, or a street name).
2. They look around at a medium zoom. If the street layout doesn’t match, they zoom out to get their bearings.
3. If the title block says Scale 1:1250but nothing lines up, they suspect the OCR or title block is wrong and test a 1:2500 scale hypothesis.
4. In repetitive suburban estates where three cul-de-sacs look almost identical, they jump between rival candidates at fine resolution to compare them side by side.
5. Most importantly, if the scan is too degraded or ambiguous, they know when to escalate to a human rather than corrupting the database with a bad guess.

Instead of jumping on the LLM wrapper bandwagon, I wanted to see if we could turn this exact operational workflow into a Markov Decision Process (MDP) and train a tiny neural network via Imitation Learning + Reinforcement Learning (REINFORCE) to actively explore the map.

Step 1: Framing Business Economics as an MDP

In reinforcement learning, an agent interacts with an environment over discrete time steps: observing a state $s_t$, picking an action $a_t$ from a menu, and receiving a reward $r_t$.

To test this properly without relying on clean synthetic grids, I built an environment on top of real Ordnance Survey OpenMap Local buildings, Open Roads, and HM Land Registry INSPIRE title polygons across Trafford and Greater Manchester.

The Harder Reality: Hand-Drawn Scans & Demolished Buildings

Lets be honest modern digital plans are easy. The real headache for councils is historical plans they are documents traced by hand decades ago against older maps, where terraced houses were merged into single blocks, pen lines wobble, and 10% to 30% of the buildings on the map have since been demolished or newly built.

On top of visual degradation, the starting address prior is often unreliable:

• UPRN (45%): Near the property, though 12% of the time it geocodes to the wrong house up to 200m away.
• Postcode (25%): Anywhere within a 100m to 350m radius of the site.
• Street (15%): Dropped at a random midpoint along the named road.
• None (15%): Dropped at a completely random coordinate in a 2.4km $\times$ 2.4km town.

The Action Space (17 Discrete Decisions)

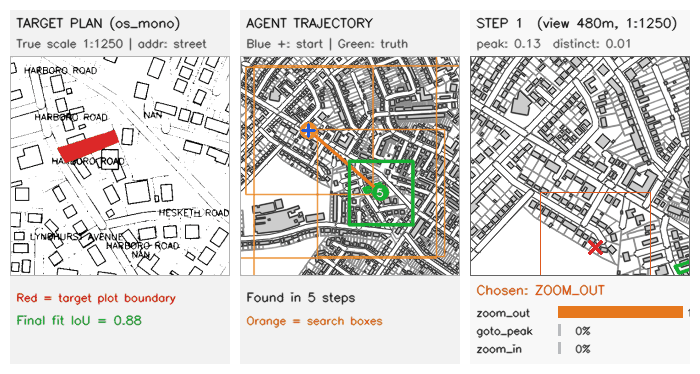

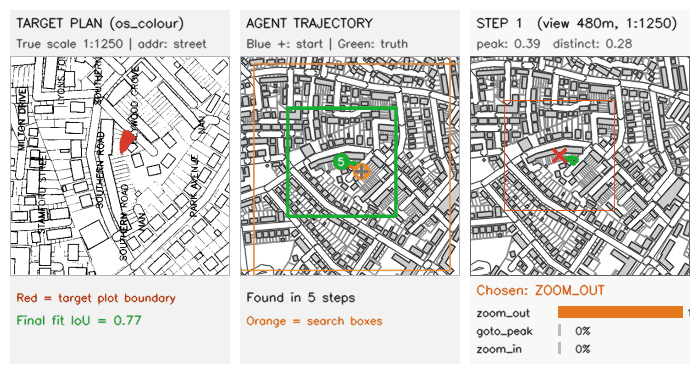

At each step (up to a budget of 16 looks), the agent views a local crop of the map through a fast Normalized Cross-Correlation (NCC) template matcher and chooses from 17 actions:

• Navigate: pan_N, pan_E, pan_S, pan_W, zoom_in, zoom_out (switching between 960m coarse, 480m medium, and 240m fine viewports), or goto_peak (center on the highest correlation peak in the current view).
• Investigate Rivals: The environment keeps a short-term memory of the top 3 distinct match locations seen so far. Picking check_0, check_1, or check_2 jumps straight to that candidate at the finest zoom level to verify it.
• Gather Clues & Test Hypotheses: read_street runs OCR on the plan to unlock street jump candidates (jump_0..2), while switch_scale flips the agent’s scale hypothesis between 1:1250 and 1:2500 (since 25% of plans have misread or missing scale text).
• Terminal Actions (commit vs. escalate): Committing runs a sub-pixel registration and checks if the plan’s red boundary polygon overlaps the true Land Registry plot ($\text{IoU} \ge 0.5$). Escalating stops the search and flags the document for human review.

Step 2: The Brain (A 6,000-Parameter Decision Encoder in Pure NumPy)

Does the RL policy need to be a massive Vision Transformer? No.

The template matcher already turns image comparisons into spatial correlation surfaces. What the agent actually needs is a sequential decision policy that looks at the summary statistics of the search so far and decides what to do next.

I built a DecisionEncoder in pure NumPy—a two-layer, 64-unit tanh Multi-Layer Perceptron (MLP) with a companion Value Network baseline:

• At each step, it takes a 48-dimensional global situation vector $G$ (current zoom, remaining step budget, current peak score, peak distinctiveness over the runner-up, distance from the geocode, scale state, and the score lead of the top remembered candidates) concatenated with a 21-dimensional per-action feature vector $A[a]$.
• Because it operates on structured state-action features [situation; option], the entire policy network is roughly 6,000 parameters, runs in microseconds on a CPU, and requires zero deep learning frameworks.

Step 3: SFT Then RL (Why RL From Scratch Fails)

To train the policy, I used the two-stage pipeline standard in modern RL:

1. Supervised Fine-Tuning / Behavior Cloning (SFT): First, I wrote two rule-based heuristic agents (coarse_to_fine and a more cautious smart_expert that double-checks rival peaks) and recorded 2,400 episodes (~20,500 expert decisions) on a 2.4km $\times$ 2.4km training area in Trafford. The MLP is trained via cross-entropy to imitate the expert (96.8% action accuracy).
2. REINFORCE with a Learned Value Baseline: Starting from the cloned weights, the agent plays its own rollouts. For every trajectory $\tau$, we compute the reward-to-go $R_t = \sum_{t’=t}^{T} r_{t’}$ and subtract the Value Network’s expected return $V_\phi(s_t)$ to get the Advantage:

We then update the policy weights along the policy gradient, combined with an entropy bonus $\mathcal{H}(\pi_\theta)$ to encourage exploration and annealed potential-based distance shaping:

The “Always Escalate” Trap When Training RL From Scratch

What happens if you skip Behavior Cloning and train REINFORCE from random weights (--scratch)?

In our experiments, a randomly initialized agent wanders around the map and makes random commits, losing -1.0 eighty percent of the time (for an average starting return of -0.66). Within 50 iterations, RL-from-scratch discovers a clever, degenerate local optimum: if it simply presses escalate on Step 1 of every single episode, it collects a guaranteed -0.35 reward with 0% wrong commits! Once it collapses into 100% instant escalation, it never experiences a +1.0 commit again.

Warm-starting with Behavior Cloning (SFT) places the policy into the region of state space where it actually finds maps, and REINFORCE (SFT+RL) then refines its decision boundaries far beyond the expert it copied.

Results: Evaluating on Unseen Trafford Map Geometry

I trained the system on 1,200 plans in one 2.4km $\times$ 2.4km area of Trafford (BNG 374000, 393000) and evaluated every method on the exact same 400 unseen test episodes in a separate 2.4km $\times$ 2.4km town (BNG 377000, 391000).

Paired 95% bootstrap confidence interval of SFT + RL over the best hand-written baseline (coarse_to_fine): **Reward +0.193 [+0.126, +0.254]**, **Correct +10.5% [+6.5%, +14.2%]**, while taking **1.5 fewer looks** per plan.

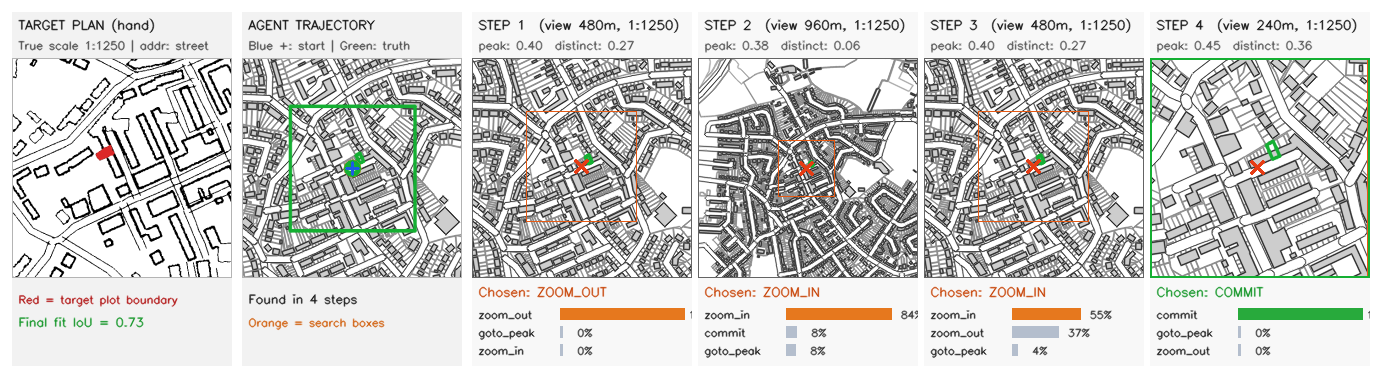

Where RL Crushes Rules: Hand-Drawn & Historical Plans (hand style)

When we break down the results by plan style and starting address quality, we see why learned sequential policies beat hand-tuned thresholds:

Look at what happened between Pure SFT (59.0% overall, 56% on hand-drawn) and SFT + RL (76.2% overall, 78% on hand-drawn):

• The hand-written smart_expert was tuned to be cautious (95.9% precision), which caused it to second-guess itself on degraded hand-drawn plans—burning 8.4 steps checking rival peaks and escalating 40% of the time.
• Pure Behavior Cloning (sft_decision_encoder) faithfully copied that hesitation (56% correct in 8.8 steps).
• Once unleashed with REINFORCE, the policy discovered that it didn’t need a rigid correlation threshold. By combining the current peak score, local distinctiveness (score - second), and the lead over remembered candidates in obs(), SFT + RL boosted recall on hand-drawn historical plans by +22% over the cloned expert (56% $\rightarrow$ 78%) while cutting search time from 8.8 steps down to 5.3 steps!

The Takeaway: Small MDPs Over Giant Models

There is a temptation in AI engineering right now to treat every multi-step business problem as a prompt-engineering exercise for a massive vision-language model.

But when you strip a problem down to its actual structure—what is the state, what are the actions, and what are the business costs of time, errors, and human escalation—you can often solve it with a 6,000-parameter network that trains on a laptop CPU in 15 minutes and executes in microseconds.

By pairing fast classical signal processing (Normalized Cross-Correlation) with a lightweight RL decision policy (SFT + REINFORCE), our agent doesn’t just recognize maps—it actively hunts them down, adapts to hand-drawn historical drift, verifies its own hypotheses, and knows when to ask a human for help.
